As a supplier of Pem Water Electrolyzers, I am often asked about the working mechanism of the membrane in these devices. In this blog, I will delve into the details of how the membrane in a Pem Water Electrolyser functions, shedding light on its crucial role in the overall process of hydrogen production.
The Basics of Pem Water Electrolysis
Pem Water Electrolysis, also known as Pem Hydrogen Electrolysis, is a technology that uses electricity to split water into hydrogen and oxygen. This process occurs within a Pem Electrolyzer Stack, which consists of multiple individual cells stacked together. Each cell contains an anode, a cathode, and a proton exchange membrane (PEM), which is the heart of the system.
The Role of the Proton Exchange Membrane
The Proton Exchange Membrane Electrolyzer relies on the unique properties of the PEM to facilitate the electrolysis process. The PEM is a thin, solid polymer membrane that is selectively permeable to protons (H+ ions) but impermeable to gases such as hydrogen and oxygen. This selective permeability is crucial for the efficient and safe operation of the electrolyzer.
Working Principle of the Membrane
When an electric current is applied to the Pem Water Electrolyser, water molecules are oxidized at the anode, releasing oxygen gas, electrons, and protons. The reaction at the anode can be represented as follows:
2H₂O → O₂ + 4H⁺ + 4e⁻
The released protons then migrate through the PEM towards the cathode, while the electrons flow through an external circuit, generating an electric current. At the cathode, the protons combine with the electrons to form hydrogen gas. The reaction at the cathode is as follows:
4H⁺ + 4e⁻ → 2H₂
The PEM plays a vital role in this process by separating the anode and cathode compartments, preventing the mixing of hydrogen and oxygen gases. This separation is essential to avoid the formation of explosive mixtures and to ensure the purity of the produced hydrogen.
Key Properties of the Membrane
The performance of the PEM is determined by several key properties, including proton conductivity, mechanical strength, chemical stability, and gas permeability.
Proton Conductivity
High proton conductivity is essential for the efficient transport of protons through the membrane. A high proton conductivity allows for a lower overpotential (the additional voltage required to drive the reaction) and a higher current density, resulting in a more efficient electrolysis process.
Mechanical Strength
The PEM must have sufficient mechanical strength to withstand the mechanical stresses and pressures within the electrolyzer. This includes the pressure differences between the anode and cathode compartments and the forces exerted during the operation of the electrolyzer.
Chemical Stability
The membrane must be chemically stable in the harsh operating environment of the electrolyzer, which includes high temperatures, acidic or alkaline conditions, and the presence of reactive species such as oxygen and hydrogen. Chemical stability ensures the long-term durability and performance of the PEM.
Gas Permeability
As mentioned earlier, the PEM must be impermeable to gases such as hydrogen and oxygen to prevent the mixing of the produced gases. Low gas permeability is crucial for maintaining the safety and efficiency of the electrolyzer.
Advantages of Pem Water Electrolysis with a High - Performance Membrane
Using a high - performance PEM in Pem Water Electrolysis offers several advantages:
High Efficiency
The high proton conductivity of the PEM allows for a more efficient electrolysis process, reducing the energy consumption required to produce hydrogen. This makes Pem Water Electrolysis a more sustainable and cost - effective method of hydrogen production compared to other electrolysis technologies.
Fast Response Time
Pem Water Electrolyzers with high - performance membranes can respond quickly to changes in power input, making them suitable for applications where the demand for hydrogen varies rapidly, such as in fuel cell vehicles and renewable energy storage systems.
Compact Design
The use of a thin and lightweight PEM enables the design of compact and modular electrolyzer stacks, which can be easily scaled up or down to meet different hydrogen production requirements.
Challenges and Solutions
Despite the many advantages of Pem Water Electrolysis, there are still some challenges associated with the use of PEMs. One of the main challenges is the high cost of the membrane materials, which are often based on expensive perfluorinated polymers. Researchers are actively working on developing alternative membrane materials with lower costs and comparable performance.
Another challenge is the long - term durability of the PEM, especially under harsh operating conditions. To address this issue, improvements in membrane materials and coating technologies are being explored to enhance the chemical and mechanical stability of the PEM.
Importance of Quality Membranes in Our Pem Water Electrolyzers
As a supplier of Pem Water Electrolyzers, we understand the critical role of the membrane in the performance and reliability of our products. We source high - quality membranes from trusted manufacturers and conduct rigorous quality control tests to ensure that our electrolyzers meet the highest standards of performance and safety.

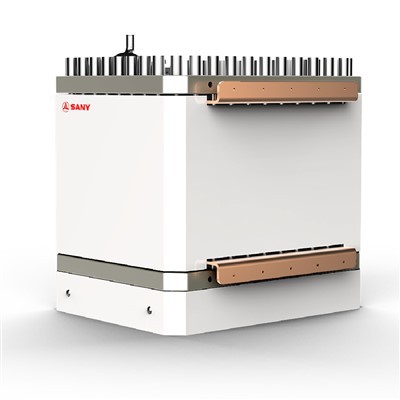

Our Pem Electrolyzer Stack is designed to optimize the performance of the membrane, providing efficient and reliable hydrogen production. We also offer customized solutions to meet the specific needs of our customers, whether it's for small - scale laboratory applications or large - scale industrial projects.
Contact Us for Your Pem Water Electrolyzer Needs
If you are interested in purchasing Pem Water Electrolyzers or have any questions about the technology, we invite you to contact us. Our team of experts is ready to assist you in choosing the right electrolyzer for your application and to provide you with comprehensive technical support. Whether you are looking to produce hydrogen for fuel cells, energy storage, or industrial processes, our Pem Water Electrolyzers offer a reliable and efficient solution.
References
- Bard, A. J., & Faulkner, L. R. (2001). Electrochemical Methods: Fundamentals and Applications. Wiley.
- Larminie, J., & Dicks, A. (2003). Fuel Cell Systems Explained. Wiley.
- Zhang, J., & Shao - Horn, Y. (2008). Electrocatalysis for Polymer Electrolyte Fuel Cells: Recent Achievements and Future Challenges. Chemical Reviews, 108(7), 2781 - 2795.
