We aim to develop tailored equipment packages for fixed and skid-mounted hydrogen refueling stations, tailored to meet the diverse needs of our customers.

Firstly, our fixed hydrogen refueling stations are equipped with unloading, pressurization, storage, and cooling units designed for remote dispensing. We also offer monitoring of key equipment status, along with cloud computing and big data analysis capabilities, ensuring a higher efficiency and utilization rate.

Secondly, our skid-mounted hydrogen refueling stations integrate hydrogen refueling, cooling, metering, and digital control. With the equipment manufacturing, testing, and commissioning processes completed in the factory, these stations can be easily and efficiently installed within a short period.

Lastly, both our fixed and skid-mounted hydrogen refueling stations are available for customization and assembly based on customers' specific requirements. They are also compatible with diaphragm or liquid-driven compressors, providing flexibility and adaptability to meet a wide range of applications.

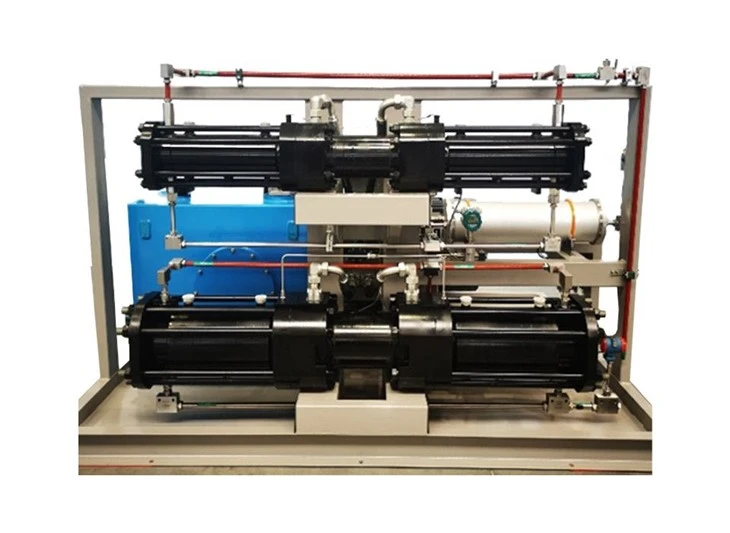

1. Liquid driven compressor

Powerful displacement: The excellent performance of this compressor is reflected in its powerful displacement, reaching 1000Nm³/H@12.5MPa provides sufficient power support for the hydrogenation process.
High pressure output: The exhaust pressure can reach up to 45MPa, making it excellent in high-pressure processes such as hydrogenation, ensuring efficient and stable operation of the production process.
Wide range adaptability: The inlet pressure range is wide, from 2MPa to 20MPa, which can be applied to different working conditions and has excellent flexibility.
Excellent temperature control: The maximum exhaust temperature does not exceed 120 ℃, and after cooling, the exhaust temperature is even lower than 40 ℃, effectively ensuring the stability of the equipment during long-term operation.

Equipment reliability

Long sealing life: The equipment adopts advanced sealing technology to ensure a sealing life of over 2000 hours, greatly reducing maintenance frequency and production downtime, and improving the overall reliability of the equipment.

Efficient motor drive: The main motor power is 110kW, providing strong driving force for equipment, ensuring efficient and stable operation, and reducing energy consumption costs.

Low noise design: The equipment noise is controlled below 80dB (A), taking into account the high sensitivity of modern industrial environments to noise, ensuring a safe working environment for operators.

2. Compressor skids

3. Hydrogen dispenser

4. Sequence control panel

5. Discharging column

Why us?

• SANY Hydrogen Energy Co., Ltd. (hereinafter referred to as "SANY Hydrogen Energy") was founded in 2022, which is a wholly-owned subsidiary of SANY International. Relying on the experience and accumulation of SANY Group in equipment manufacturing and intelligent manufacturing, SANY Hydrogen Energy supports the transformation and upgrading of the new energy industry in China,, which now has built a 2GW automated hydrogen energy equipment production line and China's largest testing platform for electrolyzers. Headquartered in Changsha, Hunan Province, SANY Hydrogen Energy is committed to becoming the world's leading hydrogen energy equipment solutions provider, with one R&D and Testing Center built in Beijing.
• SANY Heavy Industry (600031.SH), as a core member of the parent company SANY Group, was listed on July 3, 2003. It is the first enterprise in China to successfully implement the split share structure reform and achieve full circulation. In July 2011, SANY Heavy Industry was shortlisted for the first time in the FT Global Top 500 by market value, becoming the only Chinese construction machinery company on the list. Besides, another two members of SANY Group were also listed: SANY Heavy Energy (688349.SH) and SANY International (00631.HK). On May 13, 2021, SANY Heavy Industry was shortlisted for the Forbes Global 2000 list, ranking 468th. It was among the top 500 global companies for the first time. It is the first engineering machinery company in China and second in the world on the list. SANY Group has been on the list of "China's Most Admired Companies" released by Fortune Magazine for twelve years in a row, and ranked the first among companies in the manufacturing industry for four years in a row.
• SANY Group, as a world-class equipment manufacturer, vigorously promotes the "low-carbon" strategy and comprehensively extends its scope to new energy sector integrating wind energy (Sany Heavy Energy), solar energy (SANY Silicon Energy), hydrogen energy (SANY Hydrogen Energy) and energy storage (SANY Lithium Energy) to form a closed-loop industrial chain from hydrogen production, to storage, transportation and refueling to realize the large-scale application scenarios for the a comprehensive "green power and green hydrogen" solution for the development of a zero-carbon world.

The integrated hydrogen producing and refueling stations consist of:

Hydrogen producing plant: alkaline electrolyzer, separation system, purification system, etc.

Equipment area: buffer tank, compressor, hydrogen storage cylinders, sequence control panel, etc.

Hydrogen refueling area: hydrogen dispenser, etc.

Please contact us for more information.
